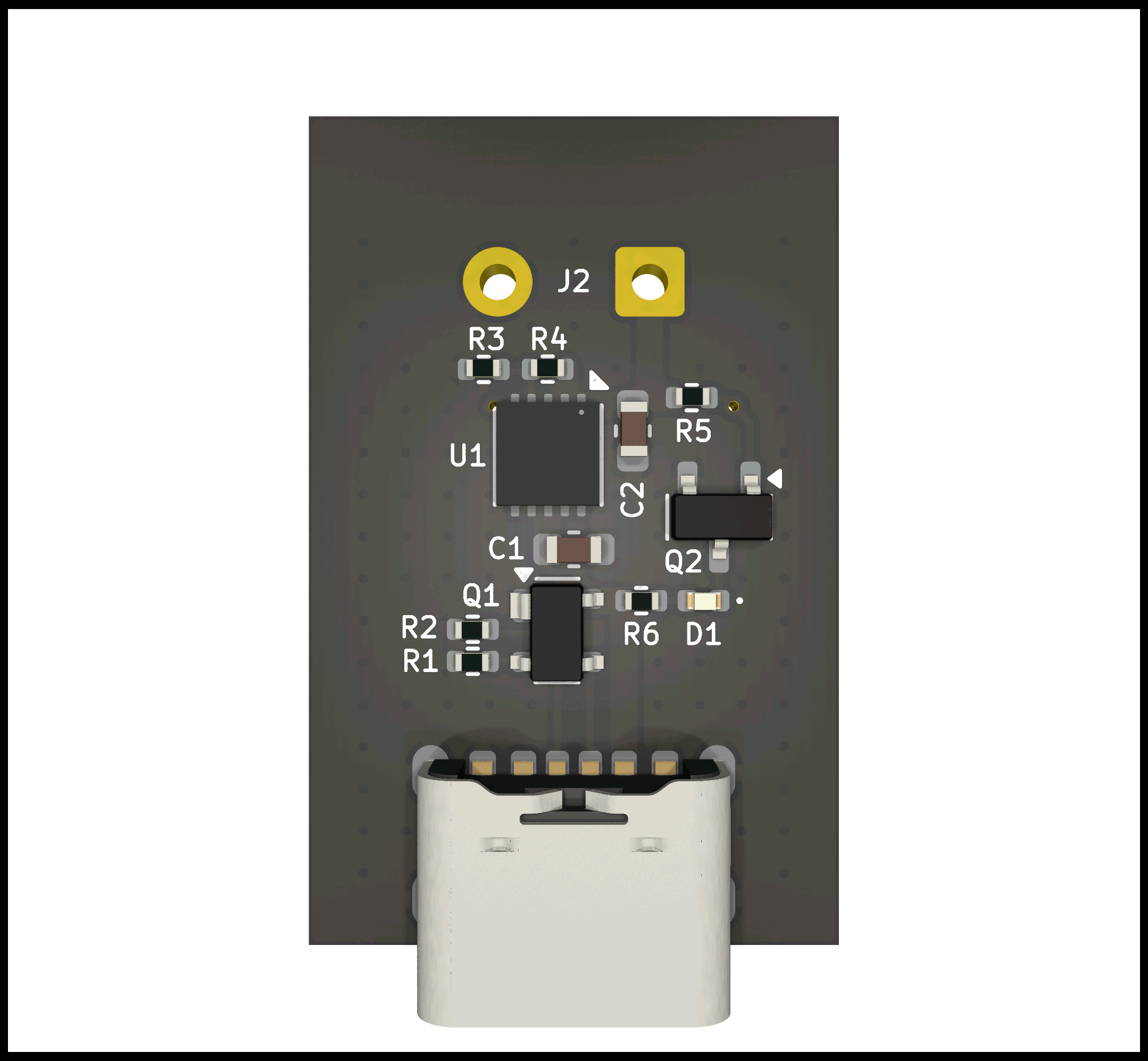

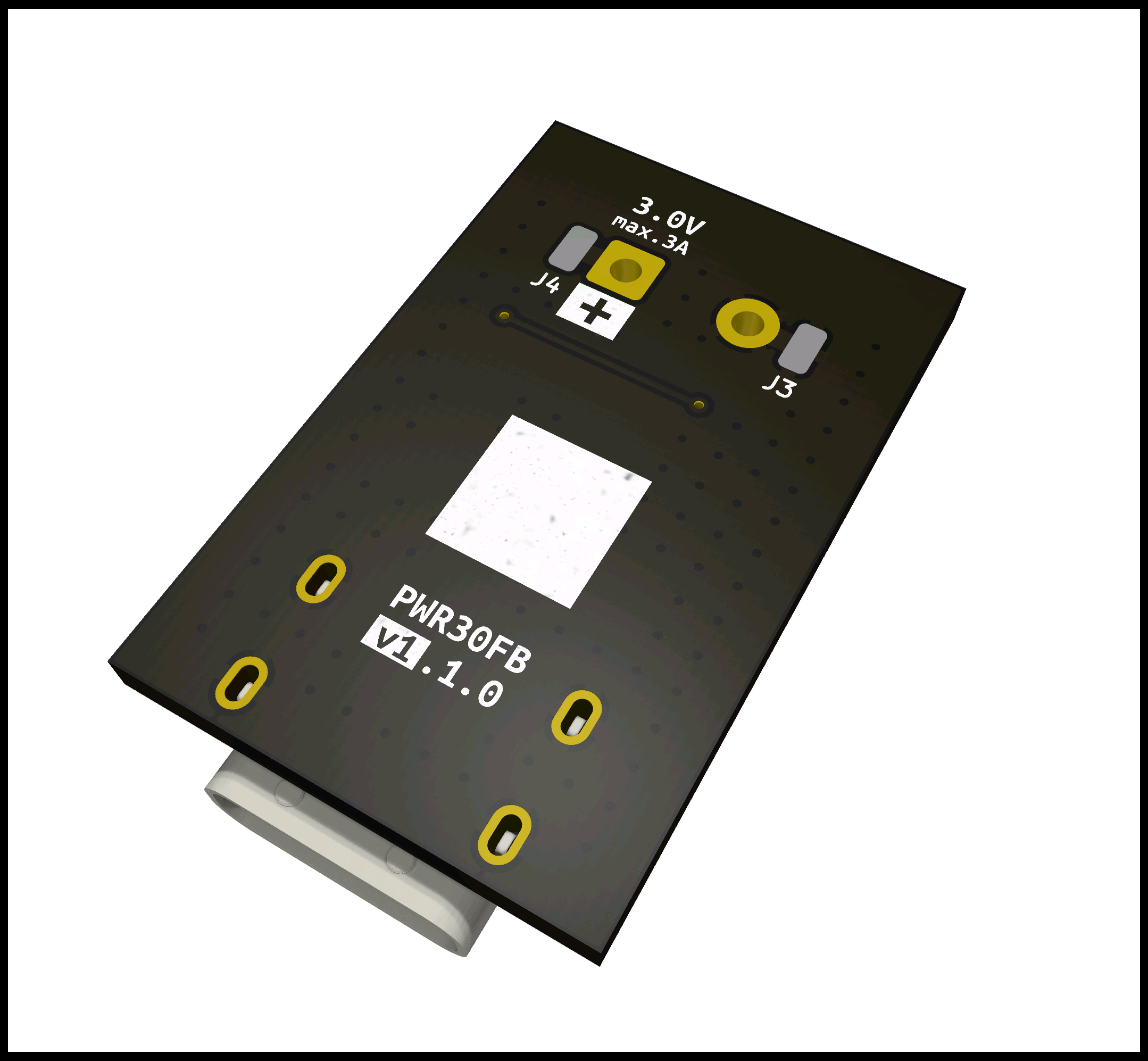

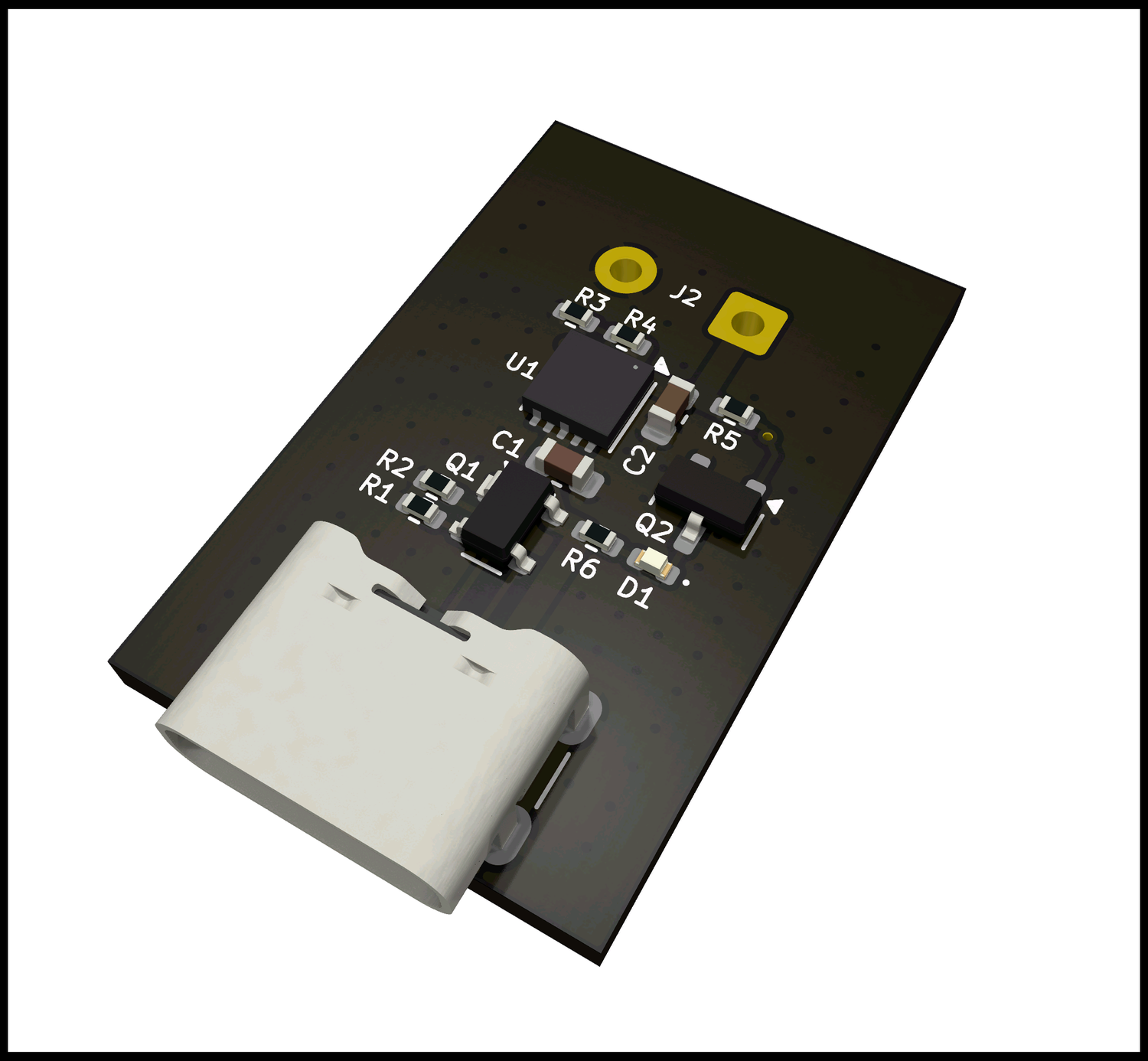

USB-C to 3V power supply module
This power supply module accepts a 5V DC input via USB-C and outputs 3V DC at a rated current of 3A†, featuring foldback current limiting.
† Please check technical specifications below for more information.
This power supply module accepts a 5V DC input via USB-C and outputs 3V DC at a rated current of 3A†, featuring foldback current limiting.
† Please check technical specifications below for more information.
This power supply module accepts a 5V DC input via USB-C and outputs 3V DC at a rated current of 3A†, featuring foldback current limiting.
† Please check technical specifications below for more information.
Technical specifications
Input: 5V DC (USB-C)
Output: 3V DC (solder pads)
Rated current: 3A†
Regulation type: foldback current limiting
Dimensions: 25×16×1.6mm
† To ensure proper thermal performance, the recommended maximum current for continuous operation is 1.475A. The rated current of 3A is intended for use only during limited periods of time.
